The ULTIMA 6 currently offers the most affordable way into our next-generation ULTIMA family of stereo power amplifiers.
It builds upon its award-winning predecessor, the SPM 1050 MK II, adding our ground-breaking next-generation ULTIMA amplifier topology.

The new 180-watt model, which benefits from John Franks’ ground-breaking dual-feed-forward circuit delivers a
lightning-fast response coupled with effortless power for astonishing dynamics and timing, delivering unrivalled fidelity.

30-years-in-the-making, our new dual-feed-forward topology offers breakthrough performance and is our first all-new circuit in three decades.
ULTIMA amplifiers have been engineered for the very finest hi-fi systems; ULTIMA is the ultimate expression of the finest high-performance,
ultra-fast, high-power amplifier technology available today.

The ULTIMA 6 has an incredible 16 proprietary MOSFET power devices which demand the most advanced and refined drive circuitry,
featuring an ultra-low-distortion, high-voltage amplifier operating at very high speed: 300 volts per microsecond.

Our TO3-style dual-die lateral-matched MOSFETs are continuously monitored with output stage error-correction circuitry and
feature fully balanced input circuitry with DC-tracking servos and full temperature compensation.

ULTIMA  6 shares the same DNA as the flagship and reference-level monos, yet benefits from greater practicality and affordability,
due to a differing power output.

Our renowned aircraft-grade solid aluminium casework offers a reassuringly high-end and entirely non-resonant enclosure for the
electronics and is presented with a redesigned 28-mm-thick fascia featuring John Franks’ latest aesthetic.

A recessed spherical polycarbonate power button illuminates for standby and operation modes and a discreet,
hidden front panel switch, located in the vertical split line, enables dimmable lighting.

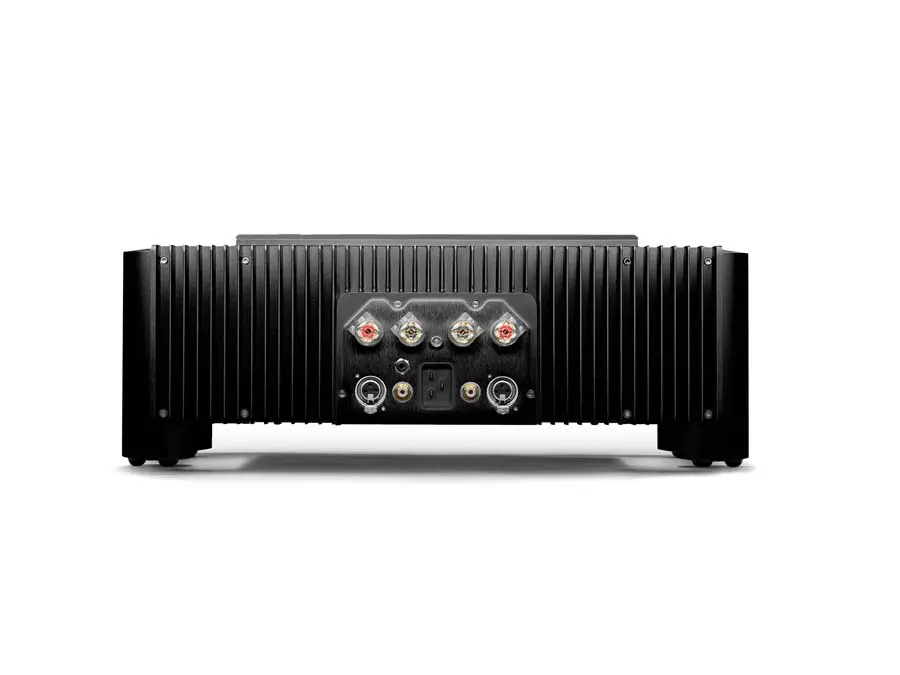

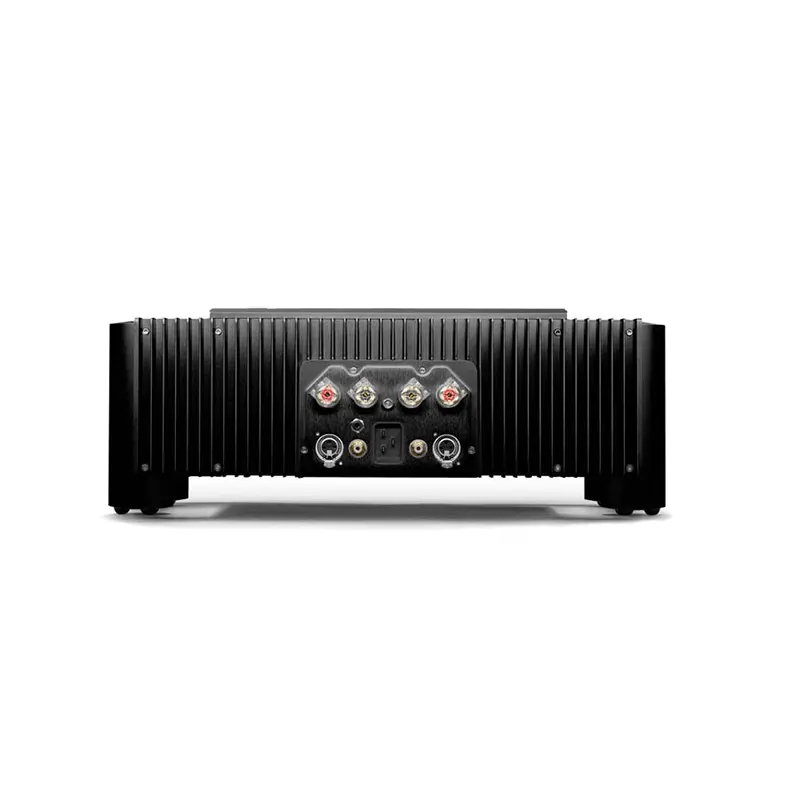

The amplifier’s rear panel contains both balanced and unbalanced connections, high-quality loudspeaker terminals, a 12 V trigger and a C-19-type IEC.


Inputs:

1x Stereo Pair of Gold Plated Balanced XLR Inputs

1x Stereo Pair of Gold Plated Unbalanced RCA Inputs

1x 12v Trigger Input – Chord Electronics Auto Start

Output:

1x Pair of High Quality, High Current, Gold Plated Type Speaker Terminals



Output Power:

180W RMS per channel  into 8Ω

THD:

0.005%

Frequency Response:

-1dB – 0.5Hz – 100kHz

Gain:

30dB

Dimensions with included Integra Legs:

18cm (H) x 48cm (W) x 36cm (D)

Dimensions with optional Side Blocks:

15cm (H) x 42cm (W) x 36cm (D)

Weight:

22.4kG
