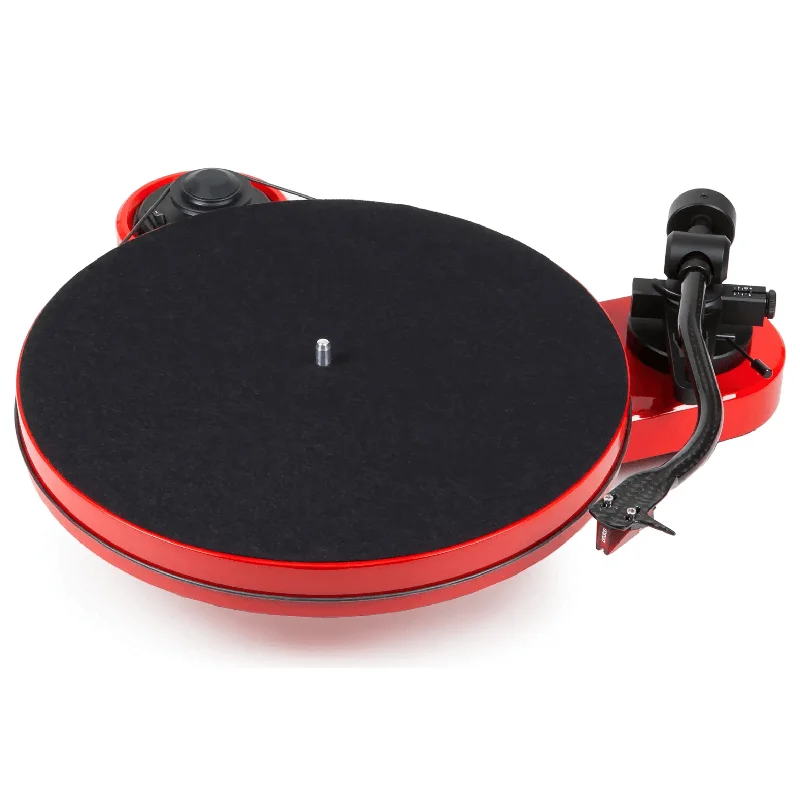

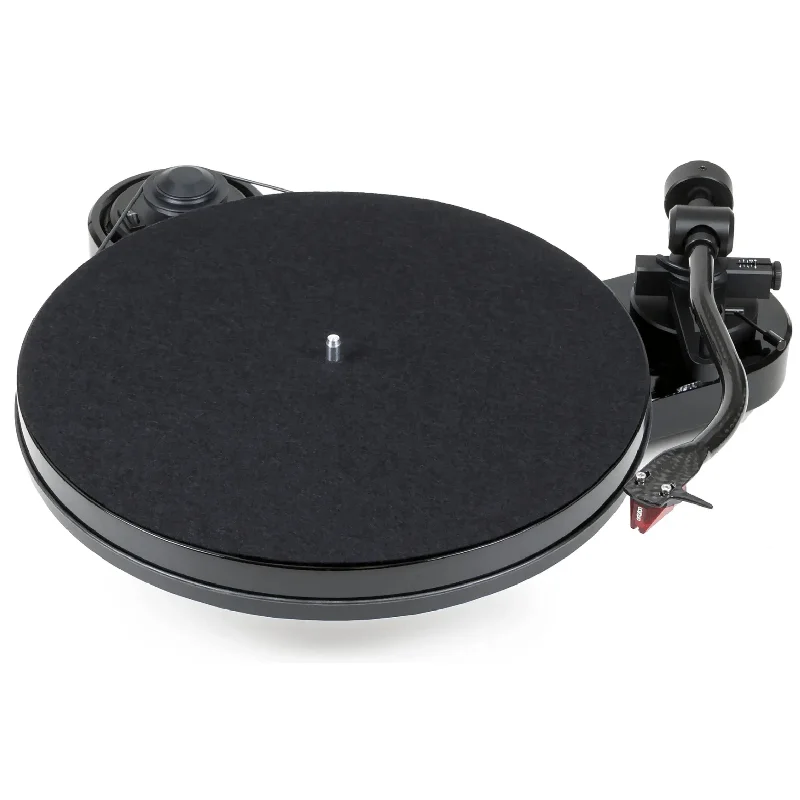

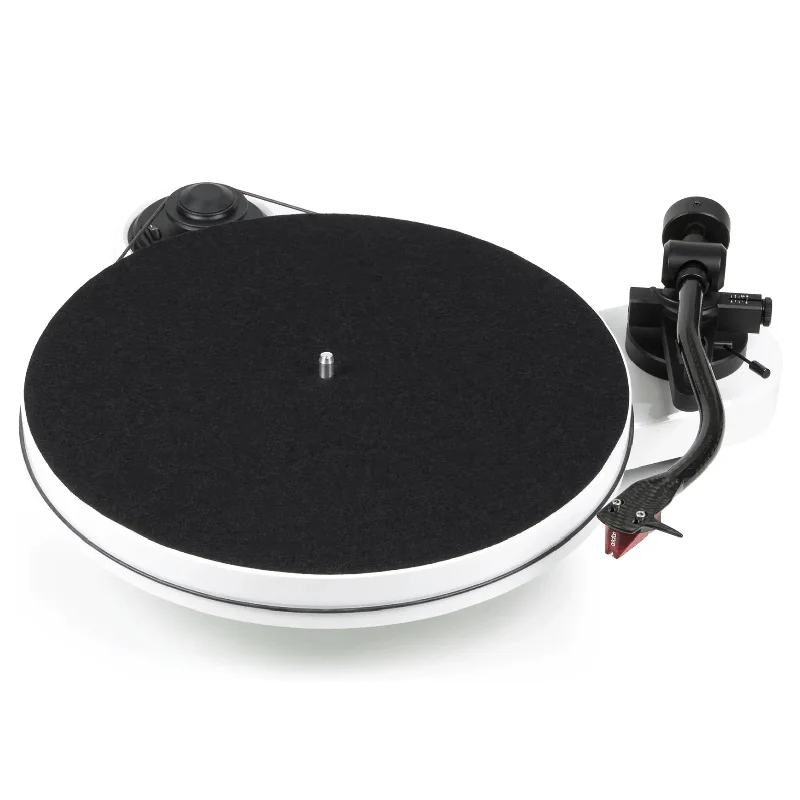

Manual turntable with 8,6'' carbon tonearm

The entry into the RPM world

RPM 1 Carbon utilises a lot of innovations and enhancements: A low resonance chassis
holds a newly designed inverted platter bearing with ceramic ball for further reduced rumble.
An outboard 15V AC motor is smoothly driven using an ultra-precision AC generator with DC
power supply for further enhanced speed stability. A completely new designed S-shaped
tonearm tube is made from carbon fibre, aluminium and resin. Using a complex 3-step process
with heat treatment and 100 bar pressure, the arm tube rigidity is strenghtened, internal damping
is maximized and resonances are reduced to a minimum. This makes the tonearm also suitable
for MC cartridges. Additional features are a new magnetic antiskating mechanism and a
TPE-damped counterweight.

The RPM 1 Carbon is available with or without Ortofon 2M Red cartridge. A super shielded, semi-symmetrical,
low-capacitance Pro-Ject Connect it E phono cable is included.

In the box:

RPM 1 Carbon (with or without Ortofon 2M Red)

Connect it E Phono Cable

Felt mat

Adapter for 7“ singles

Power supply

Allen key, stylus pressure gauge

Features

- Precision belt drive using synchronous motor

- Ultra-precision DC-driven AC generator motor power

- Inverted platter bearing with ceramic ball

- Platter made from MDF using felt mat

- 8,6” S-shaped tonearm made from carbon, aluminium, resin utilising special heat and pressure treatments

- Magnetic antiskating

- Counterweight with TPE damping

- Available with or without Ortofon 2M Red cartridge

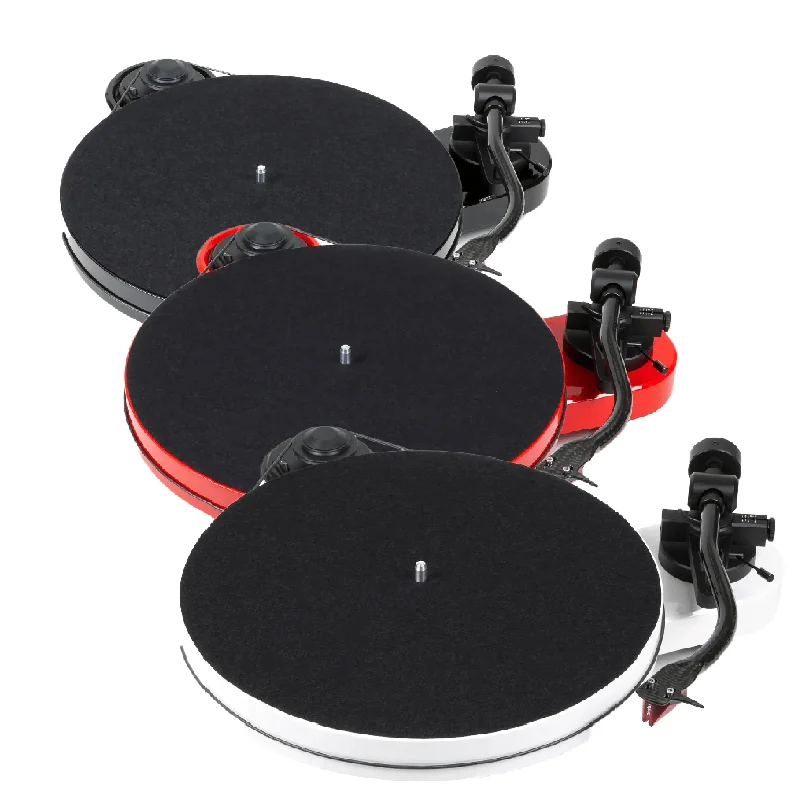

- 3 high-gloss colours (black, red, white)

Technical Specifications

Speed 33, 45 (manual speed change)

Drive principle Belt drive

Platter 300 mm MDF

Mains bearing Stainless steel axle with ceramic ball

Wow & flutter 33: +/- 0.27% I 45: +/- 0.1%

Speed drift 33: +/- 0.14% I 45: +/- 0.13%

Signal to noise - 71dB

Tonearm 8.6” carbon; aluminium and resin

Effective arm length 218.5 mm

Effective arm mass 13.5 g

Overhang 22 mm

Tracking force 0 - 25mN

Included accessories 15 volts DC / 500 mA power supply

Power connection 110/240 Volt - 50 or 60 Hz

Power consumption 5 watt max / < 0,5 watt standby

Dimensions 380 x 110 x 350mm (WxHxD)

Weight 3.8 kg net
