entryIRIS

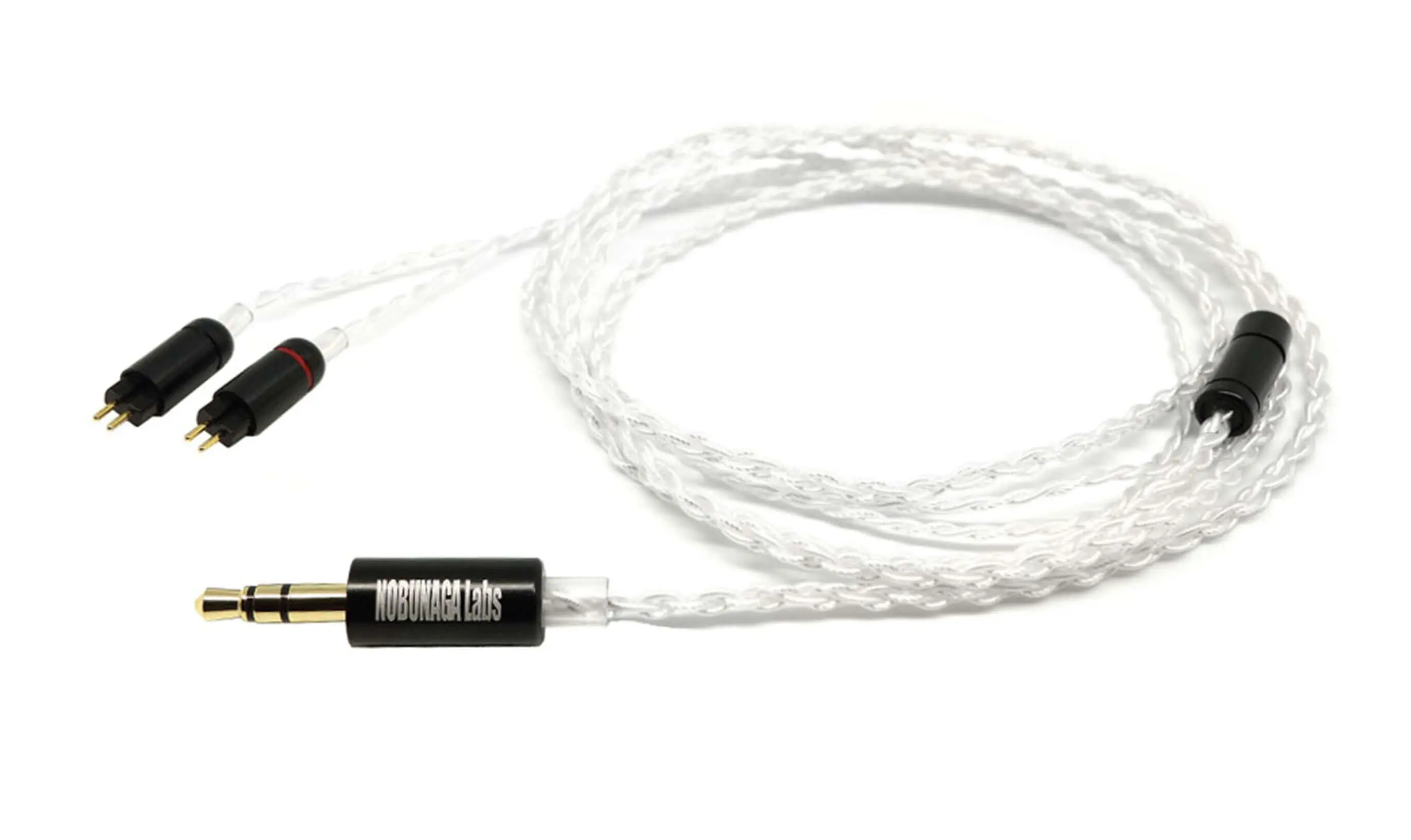

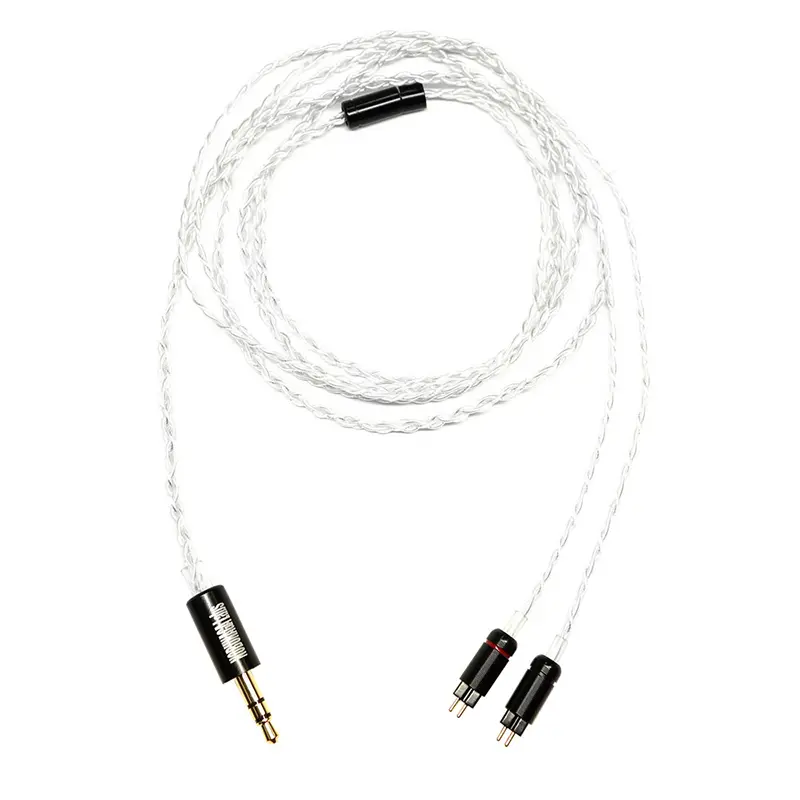

A custom IEM 2-pin re-cable that
uses 4-core OFC silver-plated wire to enhance resolution and express even the subtlest nuances of sound, and is compatible with 3.5mm stereo mini

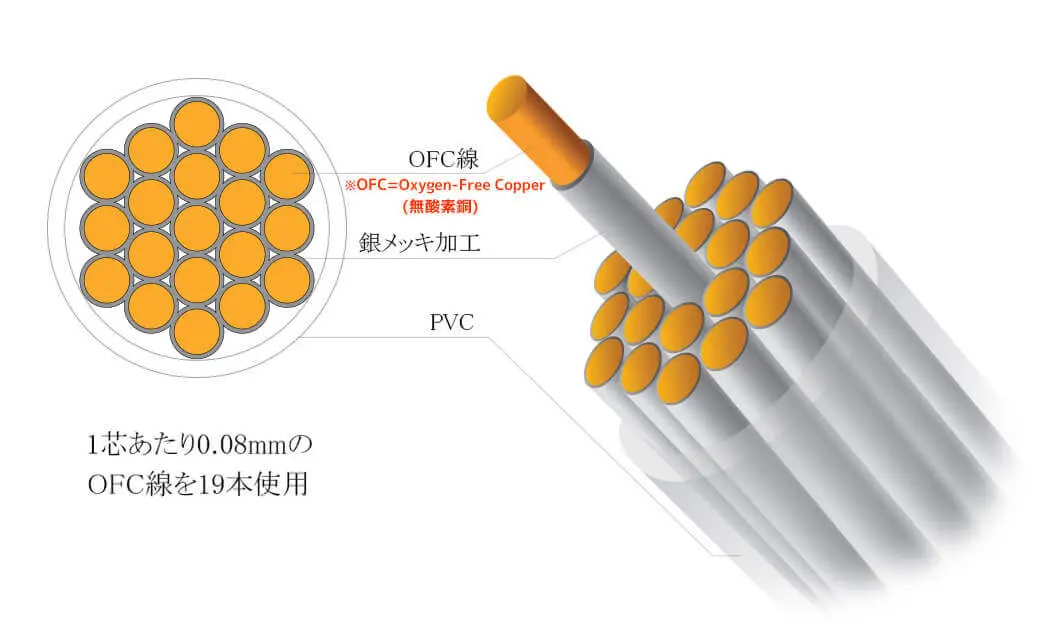

OFC silver-plated wire for high resolution

Uses 19 OFC wires of 0.08 mm per core. Reduces transmission loss and demonstrates the cable's original capabilities. In addition, silver plating is applied to achieve clear highs, crisp lows, and delicate, fast-response sound. In addition, the flexibility and durability of the conductor itself are dramatically improved by making the conductor perfectly round. It plays a role in stable signal transmission even when exposed to bending or sudden temperature changes.

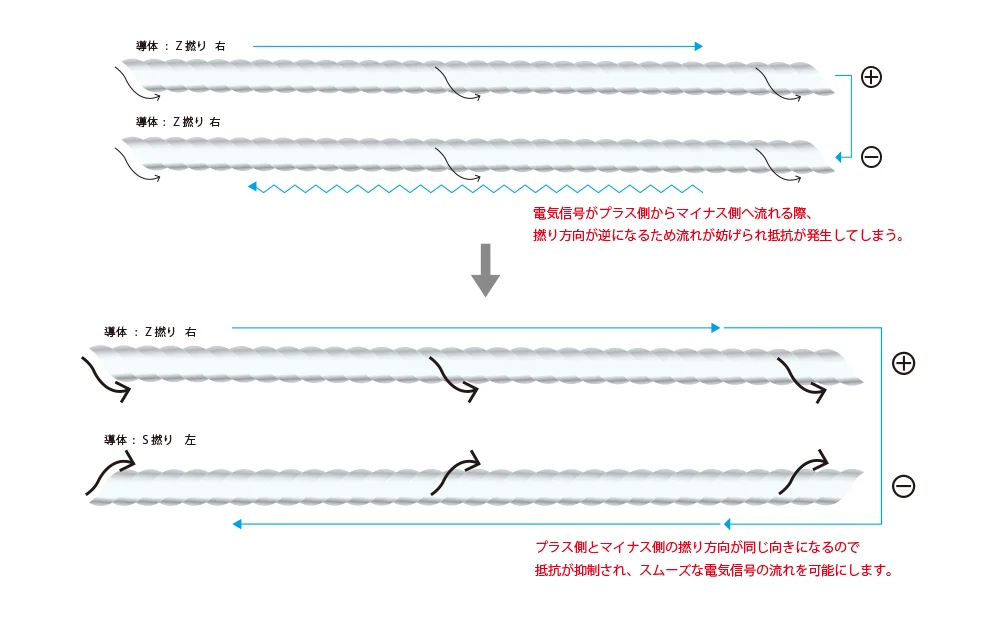

Adopts proprietary Symmetric Braid Matrix technology

The symmetrical braid matrix, which makes the twist direction of the positive and negative sides of the conductor symmetrical, making the flow of electrical signals as smooth as possible, suppresses the increase in electrical resistance between the conductors and enables the transmission of a wide range of sound from low to high frequencies.



Braided construction minimizes audio signal degradation

To improve left/right separation and suppress crosstalk, a 4-core braided structure with a separate ground section is used. Even with an unbalanced connection, it enables clear positioning and spatial expression, as well as low-frequency reproduction with reduced distortion.



Eliminate transmission loss to the utmost extent

The solder joint process (joint processing) at the branching part, which causes electrical resistance, is not performed, and the cable braid pitch is made uniform by hand braiding each cable, realizing an ideal design that does not change the transmission characteristics. The original characteristics of the cable are fully demonstrated.

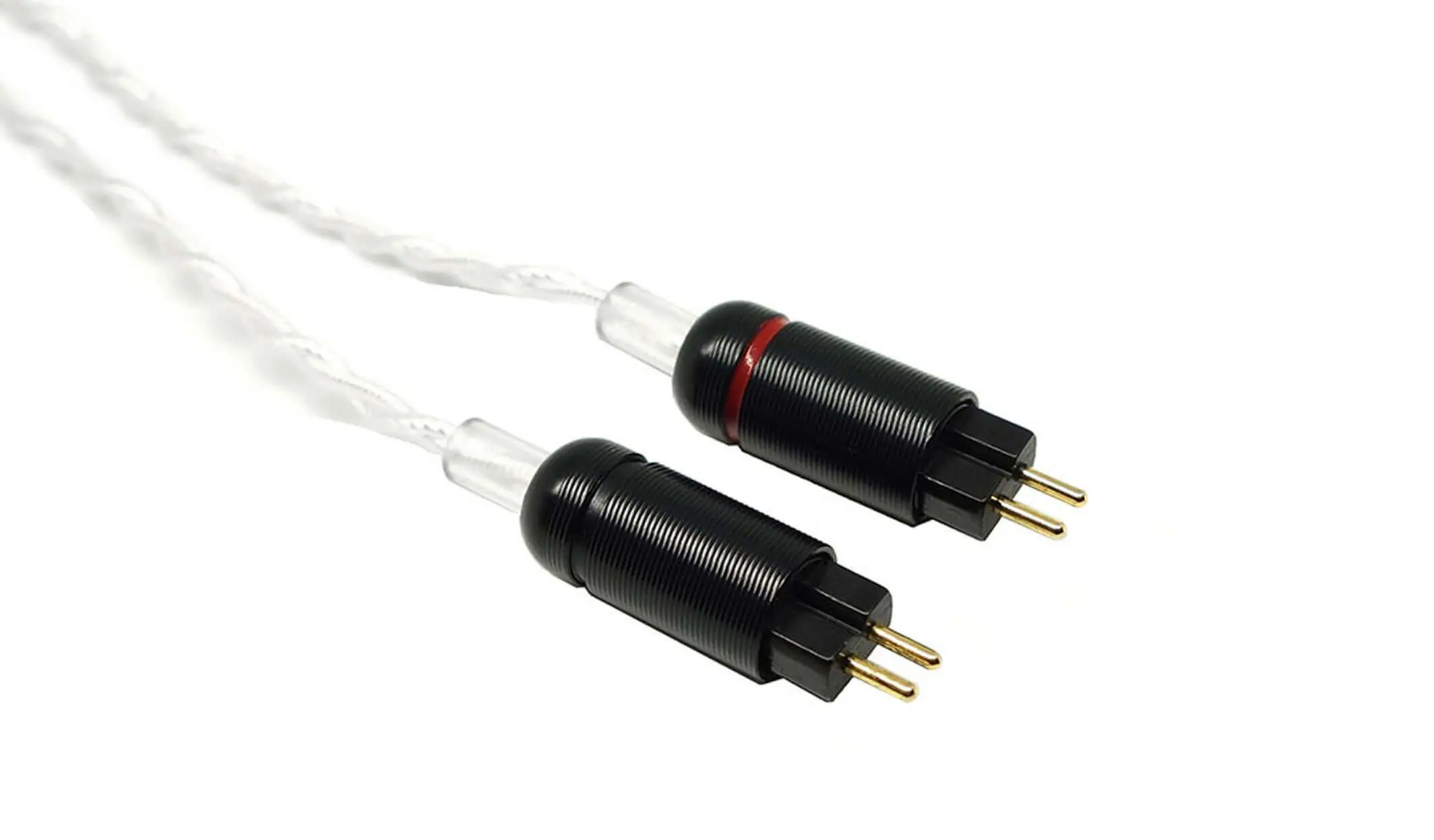

Gold-plated parts for stable electrical conductivity

The 3.5mm stereo mini plug custom 2-pin connector is gold plated to reduce contact resistance and provide high electrical conductivity. In addition, the base of the plug is made with a highly flexible bellows structure to reduce stress when the cable is bent. And the custom 2-pin shell has fine slits to facilitate easy attachment and removal.



Flexible and easy-to-handle outer coating

The outer sheath is made of PVC, which is flexible and durable. It
is very soft and reduces the touch noise that occurs when the sheath rubs against the cable. In addition, a cable slider is used to ensure a secure fit even when using the cable on the move.

specification
